IEC 61000-4-30:2015 (Ed. 3.0) Class A
(Tested according to IEC 62586-2:2017 [Ed. 2.0])

Complies with:

Voltage Quality:
EN 50160
IEC 61000-2-2
IEC 61000-2-12

Power Quality:
IEC 61000-4-30:2015 (Ed. 3.0) Class A
IEC 61000-4-7 Class I
IEC 61000-4-15 Class F1

Energy:
IEC 62053-22 class 0.2S
IEC 62053-23

Climate, Environment:
IEC 62586-1

Safety:
IEC 62586-1
IEC 61 010-1

EMC:
EC 62586-1
IEC 61000-6-5
IEC 61000-6-4
IEC 61000-6-2
CE-marked according to EC/EEA directives

Instrument type:
IEC 62586-1: PQI-A-FI2-H

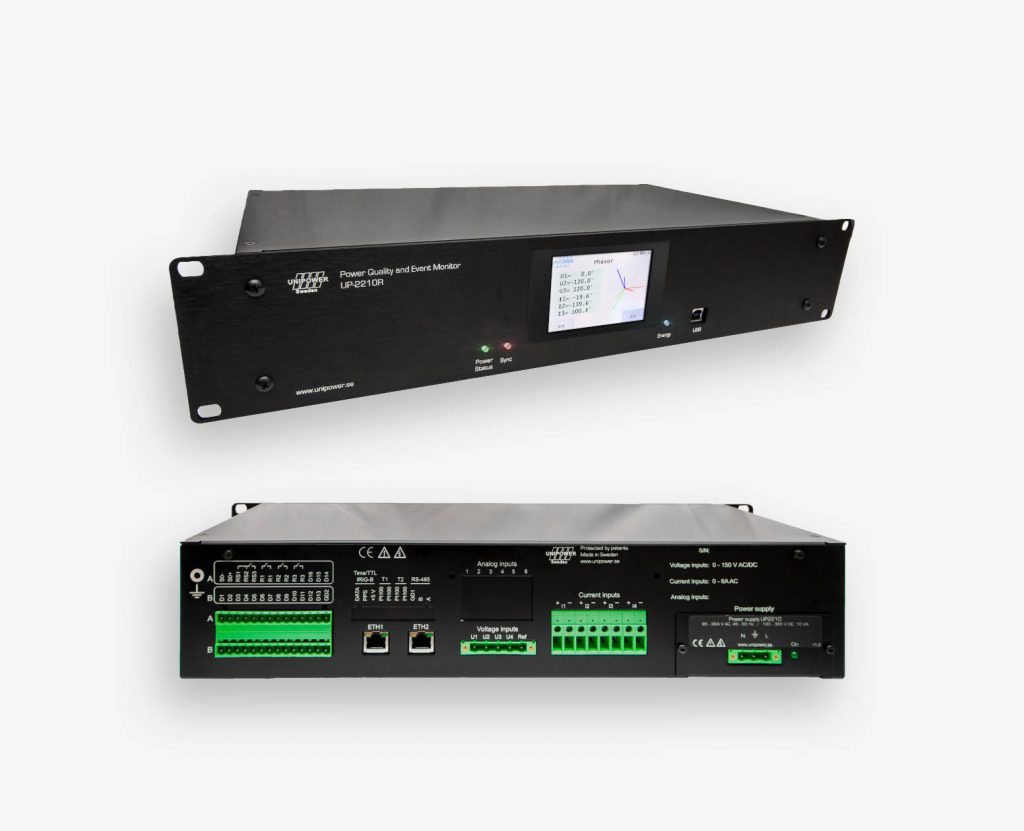

UP-2210R PQ meter for power quality measurement

The nodes in the PQ Secure system consist of UP-2210(R) meters.

The UP-2210R unit works as an advanced power quality meter and at the same time as a fault recorder. All of the power quality parameters can be analysed in accordance with voltage quality standards such as the EN 50160 or any national/international regulation.

The UP-2210R unit captures both steady state disturbances (harmonics, flicker etc.) as well as rapid voltage changes (sag/swell events and fast transients).

Sampling Rate

Basic Sampling Rate 5 000 samples/cycle (50Hz).

Map and event list, graphical data, and reports

The PQ Secure system will automatically transfer data from the UP-2210R units to the central database according to a user-specified time schedule. The PQ Secure software will also analyse the measure result, show events, display graphical data, generate reports, send alarms and much more.

For more information about the PQ Secure system or the UP-2210 meters, please contact your local representative or Unipower.
